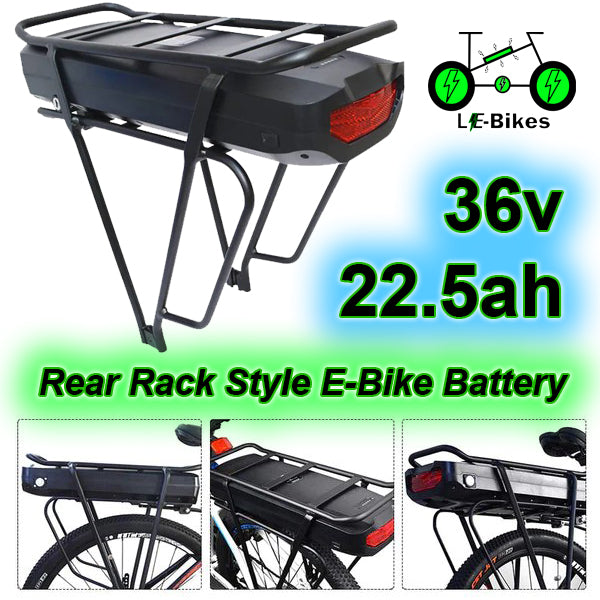

Rear Rack E-Bike Battery for Bafang E-Bike Conversion Kits

Varstrom Rear Rack E-Bike Battery for Bafang eBike Conversion Kits

Bettery for Bafang Drive Kits

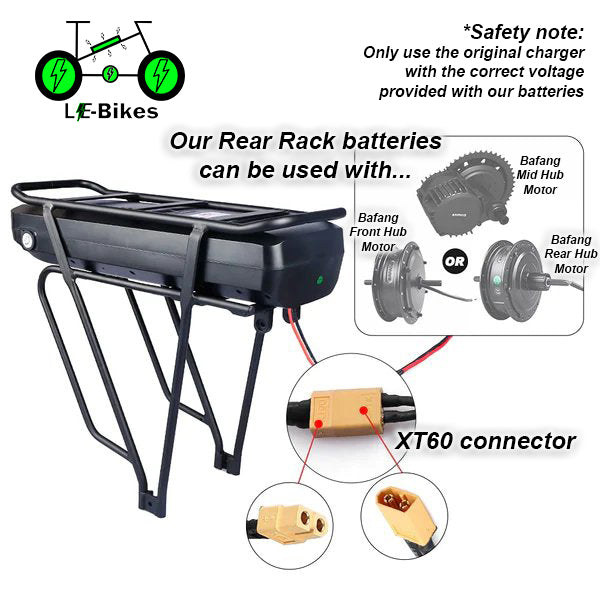

Varstrom offers special batteries for Bafang motors, the battery has built-in BMS for Bafang motors.

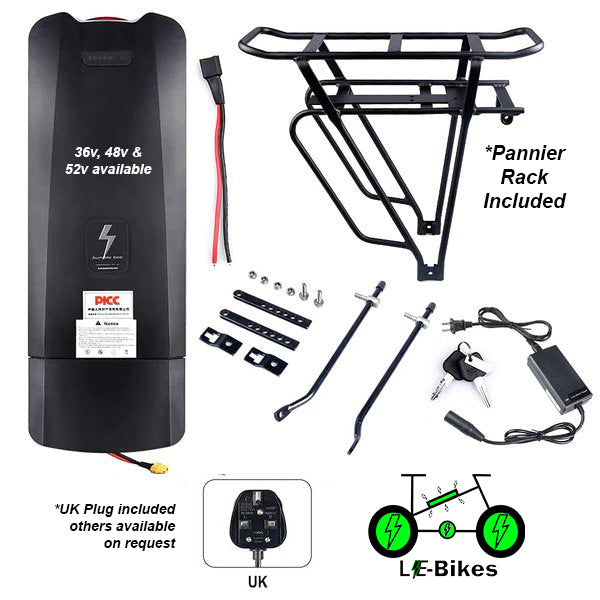

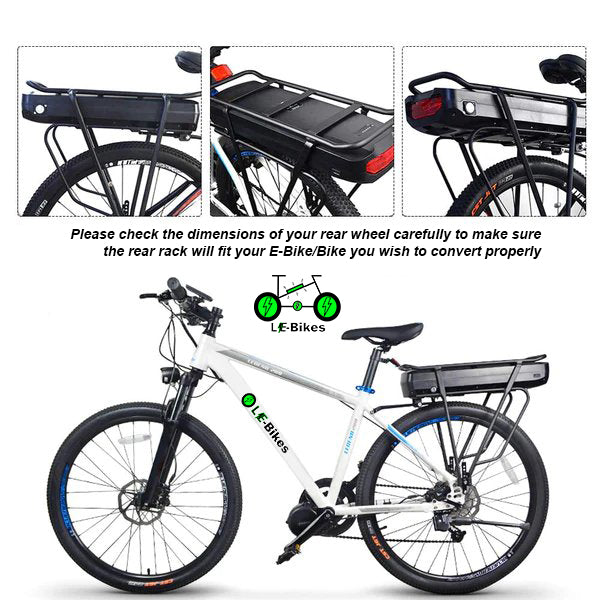

Please Note - This product is the Battery and Rack as a unit with fittings, please check the measurements of the rack before buying.

Power Options

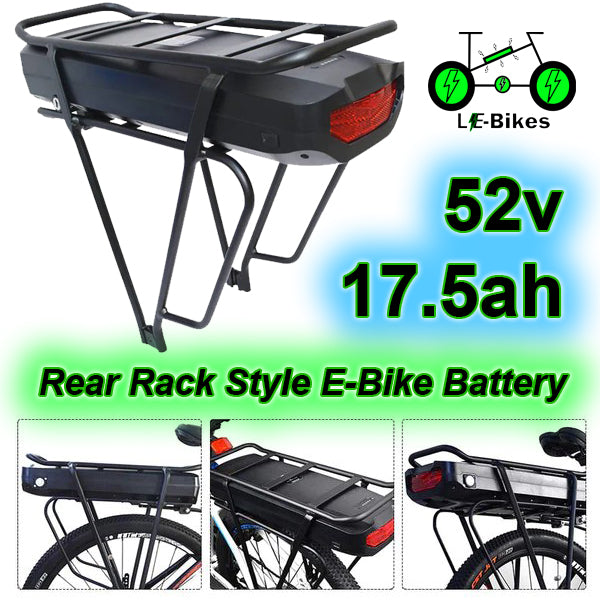

Choose between 36v, 48v and 52v Rear Rack battery for your E-Bike/E-Bike conversion

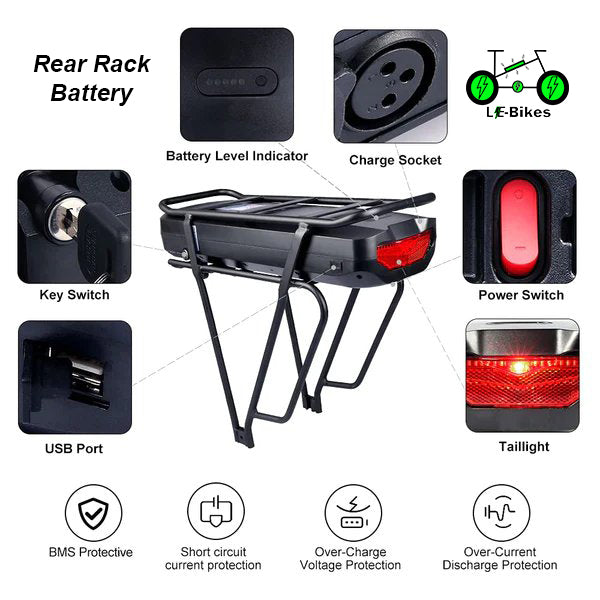

Protection Function

Overpower Protection - Over Voltage Protection - Over Current Protection - Over Discharge Protection - Cell Balancing - Overcharge Protection - Short Circuit Protection

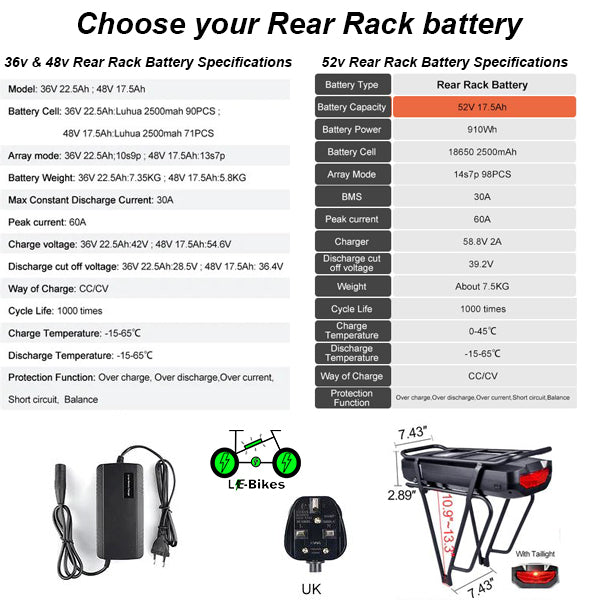

Specification:

• Rated Volt: 36/48/52 (V)
• Rated Capacity: 22.5/17.5/17.5 (Ah)
• Battery Cell: 2500mah/2500mah [Panasonic]/2500mah [Panasonic]
• Cell Arrangement: 10s9p/13s7p/14s7p

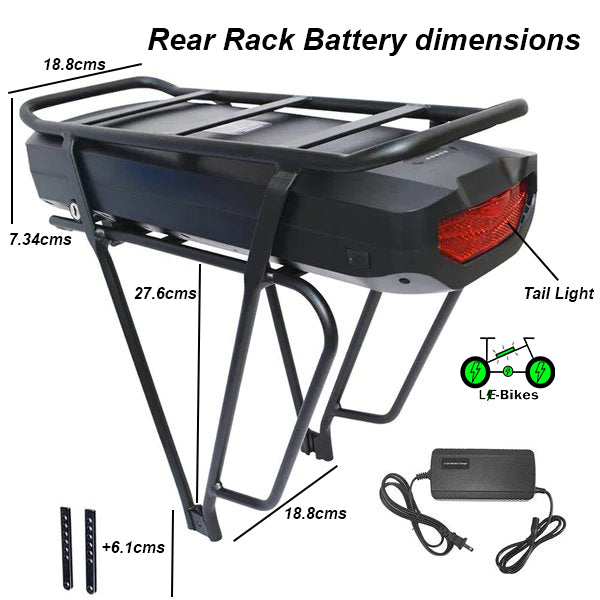

• Battery Size: 476*165*90 (mm)
• Rack/Mount dimensions (please see images)
• Battery Weight: 7/6/6 (kg)
• Max Constant Discharge Current: 30 (A)
• Peak Current: 60 (A)
• Charge Voltage: 42/54.6/58.8 (V)
• Cut-off Voltage: 28/36.4/36.4 (V)
• Way of Charge: CC/CV
• Charging Time: 2000
• Charge Temperature: -15 to 65 (℃)
• Discharge Temperature: -15 to 65 (℃)
