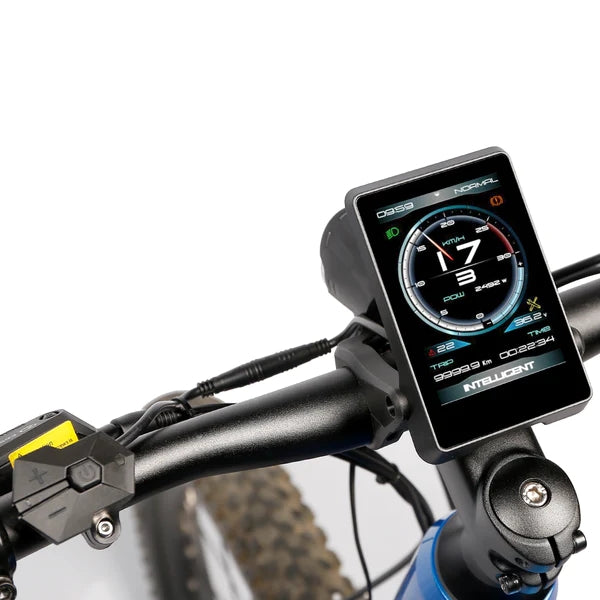

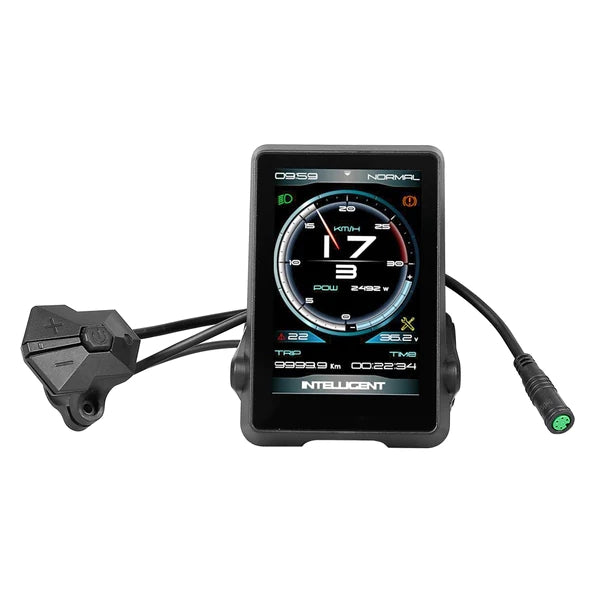

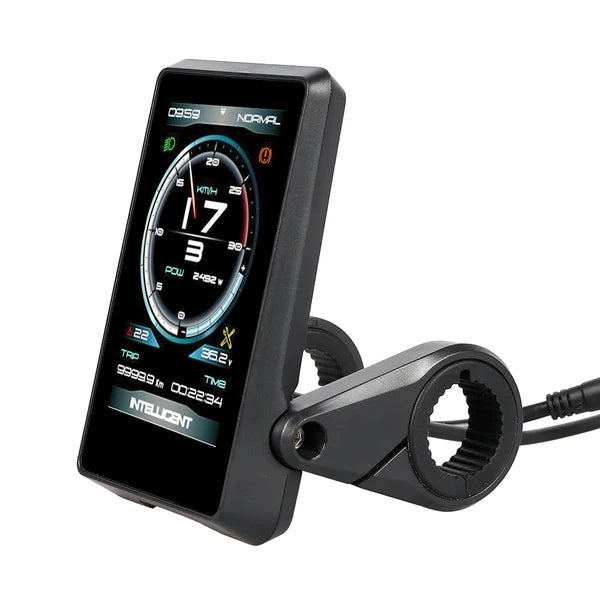

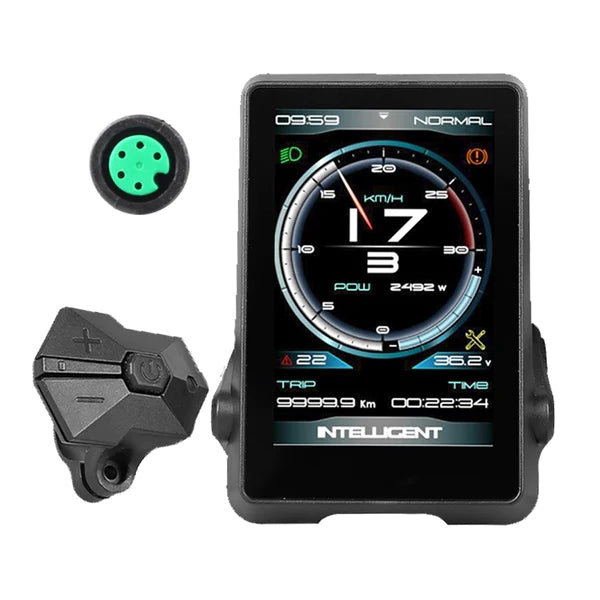

T1 Touch 1 UART Protocol Touchscreen eBike Display

The most powerful e-bike display in Varstrom's history - Touch 1

In order to display all the information and to improve the rider's experience, for the first time Varstrom has included a touch screen on the display, allowing you to use your display just like you'd use your smart phone!

Multi-function eBike Display

This display supports 8 languages, contains a pattern unlock function, USB type-c port for charging, 60 minute riding graph, light sensor, speed indicator (which can be set to either mph or km/h), a smart battery indicator, mileage indicator, clock, brightness settings, power/current indicator and displays error codes.

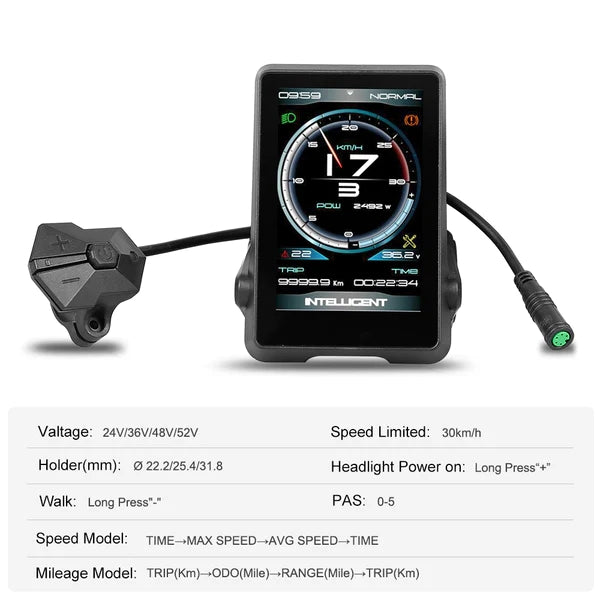

Specifications

• Model: Varstrom Touch 1
• Screen: TFT IPS Touchscreen
• Screen Size: 320*480 (Pixel)
• Voltage: 24 to 65 (V)
• Port: Type-c, 5V/500mA
• Direction: Vertical
• Operating Temperature: -20 to 70 (℃)
• Material: ABS IP Rate: IP65

Functions of the Touch 1 display

• Clock: 24 (h)
• Head Light: Head Light Indicator
• Speed Value: Real-time Speed, km/h or mph
• Errors: Error Code
• Mileage Mode: Odometer, Trip Distance, Range
• Riding Mode: Normal, Sport
• Brake: Brake Indicator
• Assistant Level: 3/5/9 Levels
• Power: Real-time Power/Real-time Current
• Power: Power Indicator
• Battery Voltage: Percentage or voltage
• Speed: Real-time Speed
