Varstrom DM03 UART Protocol E-Bike Display for Bafang eBike Conversion kits

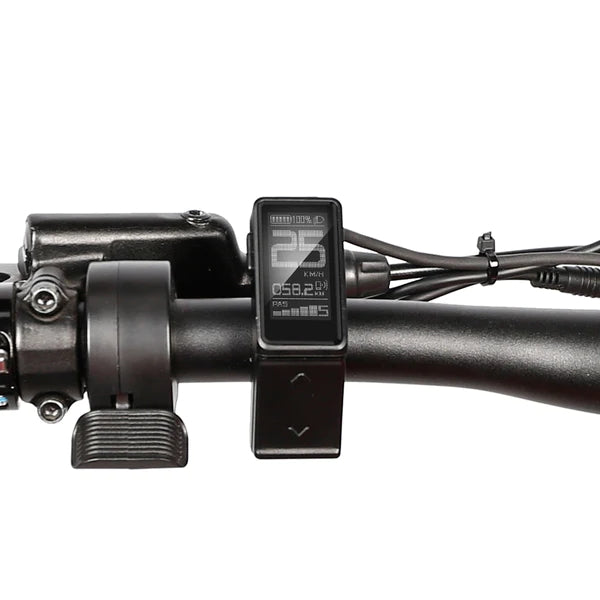

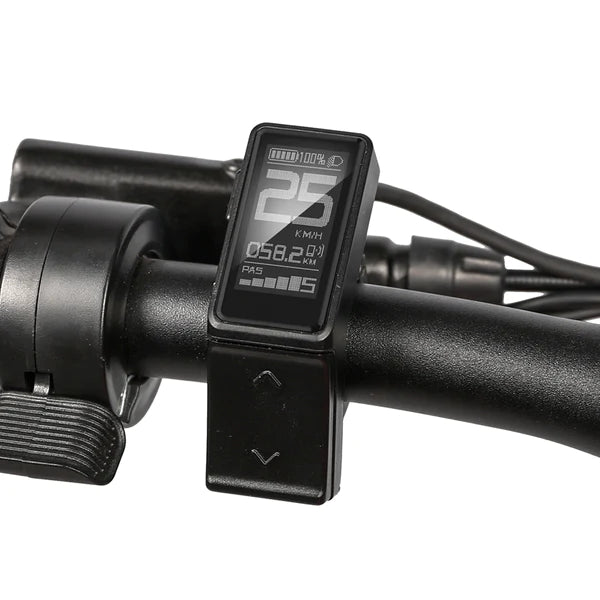

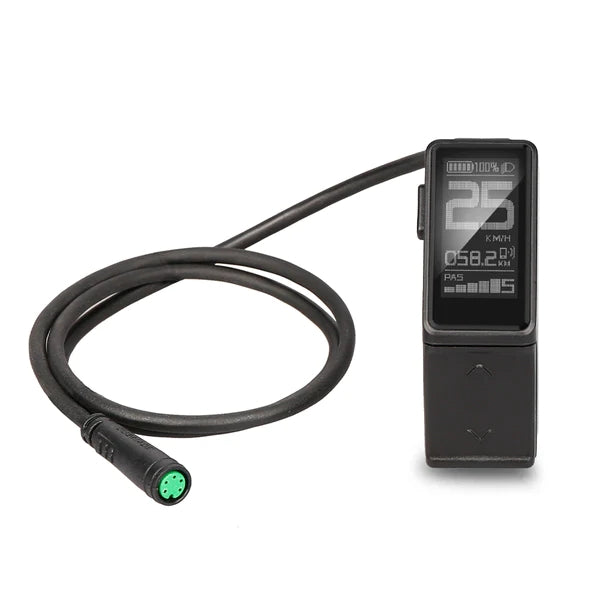

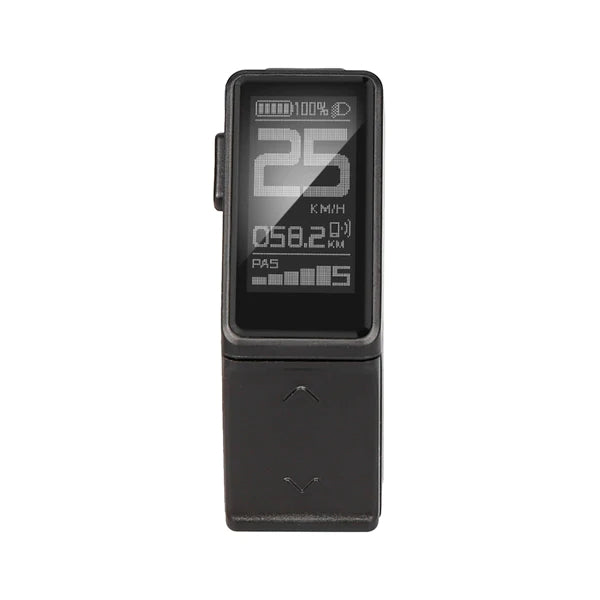

DM03 has a tempered glass screen with 2.5D chamfered edge, a 1.3 inch, high brightness OLED screen, enlarged operating space, plus ergonomic button design. The display's waterproof level is IP65, making it excellent for outdoor use, and it also has a built-in Bluetooth function, compatible with UART protocols.

Specification

• Power supply: DC 24V/36V/48V
• Rated current: 18 mA
• Shutdown leakage current: below 1uA
• Screen specification: 1.3 (in) OLED
• Protocols: UART

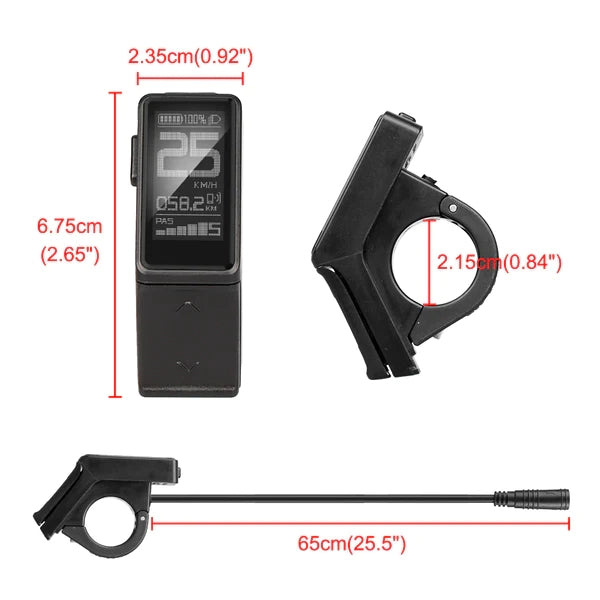

• Size: 75*50*70 (mm)
• Weight: 0.066kg
• Operating temperature: -20 ~60 (°C)
• Storage temperature: -30 ~ 80 (°C)
• Waterproof level: IP65

Functions for DM03

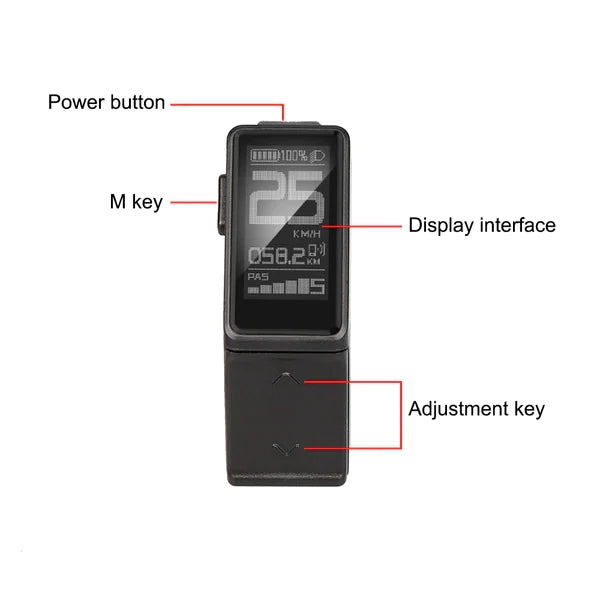

• Four buttons, ergonomic design;
• Selective digital and icon power assist gear for high visibility;
• Speed km/h or mph;
• Speed: Real-time speed (SPEED), maximum speed (MAX), average speed (AVG);
• Battery indicator with percentage display;
• Range: Endurance mileage (*available if BMS provides necessary info);
• Headlight on/off status indication and control;
• Mileage: Subtotal mileage(TRIP), total mileage (ODO);
• Walk assist function;
• Parameters setting and advanced setting;
• Error code indication;
